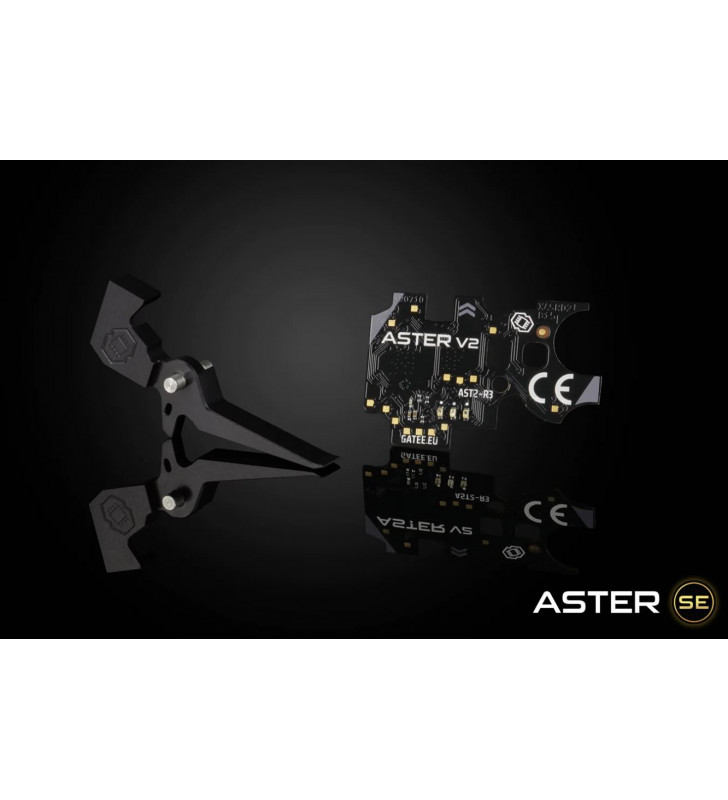

Gate Mosfet Aster V2 SE Expert + Quantum Trigger (cablage arriere)

ASTER V2 SE raises the price-performance ratio by including a Quantum Trigger in the set and new functions programmable via trigger. Now, out-of-the-box, you can set sensitivity from ludicrous touch through hair to full movement. Improved programming via trigger gives you new settings such as automatic Pre-Cocking (LOW, MID, HIGH), trigger sensitivity adjustment, Active Brake settings with top-class adaptive mode and the new SAFE-SEMI-BINARY selector mode. Calibration, DTC codes—all available just via trigger and selector movement. Additionally, you get the new noise-resistant trigger detection algorithm. ASTER's smart fuse protects your AEG’s battery, motor, and the controller, even in the case of reverse battery connection. This feature, along with the optical sensors, makes ASTER V2 SE one of the most durable ETUs on the market. ASTER V2 SE is not just a regular ETU/EFCS mosfet. It is a complex system that turns your AEG into future-proof advanced training equipment.

ASTER is future-proof, thanks to compatibility with USB-Link and Blu-Link. You can update your firmware and get new options, connect additional accessories, check telemetry.
‎
What is an ETU? It is an Electronic Trigger Unit replacing trigger contacts and the cut-off lever, which takes control of your AEG.
Why ASTER's programming via trigger is user-friendly?
‎

you do not need to rush

you can navigate the menu very quickly and efficiently or slowly and calmly

the colors of the led lights are only a help – you can rely on the vibration of the motor

in case of any problems, you can use the very popular USB-Link or Blu-Link and use the GCS App
‎
What is the self-learning automatic pre-cocking?
‎

thanks to Pre-cocking, you gain trigger reaction similar to real life

it will automatically set piston position

it is easy-to-use, just set one of the 3 modes: LOW, MID or HIGH

it automatically adapts to the battery voltage and rate of fire

ASTER gives you great flexibility and is future-proof. Today you can program the most important functions with the trigger, and tomorrow you can borrow a USB-Link or Blu-Link from a friend to configure advanced functions, perform a firmware update, run diagnostics or use the GCS app on a smartwatch

Hair-trigger – up to 60 sensitivity in the first millimeter of trigger movement

Top-notch automatic pre-cocking

ASTER is resistant to reverse polarity

You can update its firmware via the Internet

ASTER is a part of the GATE Ecosystem

Lowest in the market current consumption. Deep sleep mode with only 0.29 mA current consumption prevents battery discharge

Built-in voltage boost converter allows for trouble-free operation with weaker batteries and increases the switching efficiency

3.75 V ready – it operates at very low voltage (even 1.2 V during the shot), which is important in high-tuned AEGs, where the voltage under load drops significantly

Sensor that supports Infinite Torque-up, DSG, SSG, 19-tooth and standard gears

The possibility of using a mechanical trigger lock

Compatibility with brushless motors
