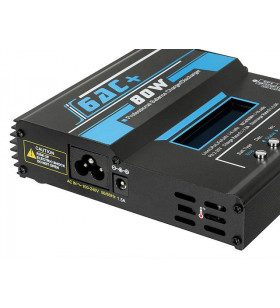

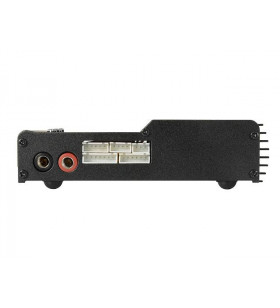

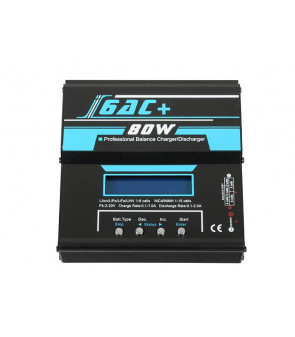

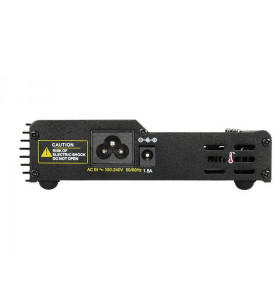

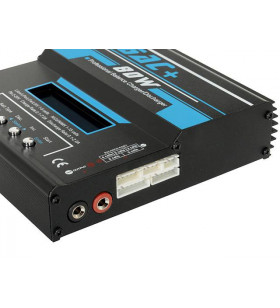

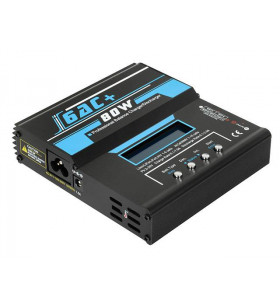

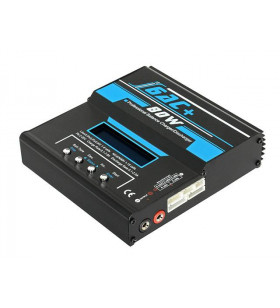

Chargeur de Batterie I6AC Pro Multi Lipo/Life/Nimh/Plomb/Nicd

Operating voltage range: AC 100-240V or DC 11-18V

Circuit power: Max. Charge power 80 Watts / Max. Discharge power 10 Watts

Charge current range: 0.1-8.0A

Discharge current range: 0.1-2.0A

Current drain for balancing: 460mA / cell

Supported battery pack cell count: 1-15 NiCd/NiMH, 1-6 Li-Po/Li-ion/Li-Fe, Pb 2-20V

SPECIAL FEATURES

* Optimized operating software

I6AC+ features the so-called AUTO function that set the feeding current during the process of charging or discharging. Especially for Lithium batteries, it can prevent the overcharging which may lead to an explosion due to the user's fault. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two way linkage and communication, to achieve the maximum safety and minimized the trouble. All the settings can be configured by users!

* Internal Independent lithium battery balancer

I6AC+ employs an individual-cell-voltage balancer. It isn't necessary to connect an external balancer for balance charging.

* Balancing individual cells battery discharging

During the process of discharging , I6AC+ can monitor and balance each cell of the battery individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.

* Adaptable to various type of lithium battery

I6AC+ is adaptable to various types of Lithium batteries, such as Li-ion, LiPo and the new LiFe series of batteries.

* Fast and storage mode of lithium battery

Purposes to charge Lithium battery varies, "fast" charge reduce the duration of charging, whereas "store" state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery.

* Maximum safety

Delta-peak sensitivity: The automatic charge termination program based on the principle of the Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process will be terminated automatically.

* Automatic charging current limit

You can set up the upper limit of the charging current when charging your NiCd or NiMH battery; It is useful for the NiMH battery of low impedance and capacity in the "AUTO" charging mode.

* Capacity limit

The charging capacity is always calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.

* Temperature theshold

The battery's internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated. *The function is available by connecting optional temperature probe, which is not included in our package.

* Processing time limit

You can also limit the maximum process time to avoid any possible defect.

* Input power monitoring

To protect the car battery used as DC input power from being damaged, its voltage keeps being monitored. If it drops below the lower limit, the process will be ended automatically.

* Data store/load

The maximum five batteryies'data can be stored for users'convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting.
